Dragonboard 410c (fastboot)¶

This guide covers setting up devices that use the fastboot protocol for deployment and booting in LAVA, such as the DragonBoard 410c.

LAVA uses fastboot to deploy images to the device partitions and to boot the device. LAVA supports running fastboot directly from the worker host or within a Docker container. The Docker option is recommended as it allows using custom fastboot binaries and provides better isolation.

Hardware setup¶

Ensure your device is connected to the LAVA worker properly and prepared for fastboot deployment and booting.

Setup power control.
Setup serial console.

Connect the USB to serial adapter adapter to the DB410c's Low Speed Expansion Connector UART1:

DB410c Pin Signal USB-Serial Adapter

Pin 1 GND GND

Pin 11 TXD RXD

Pin 13 RXD TXD

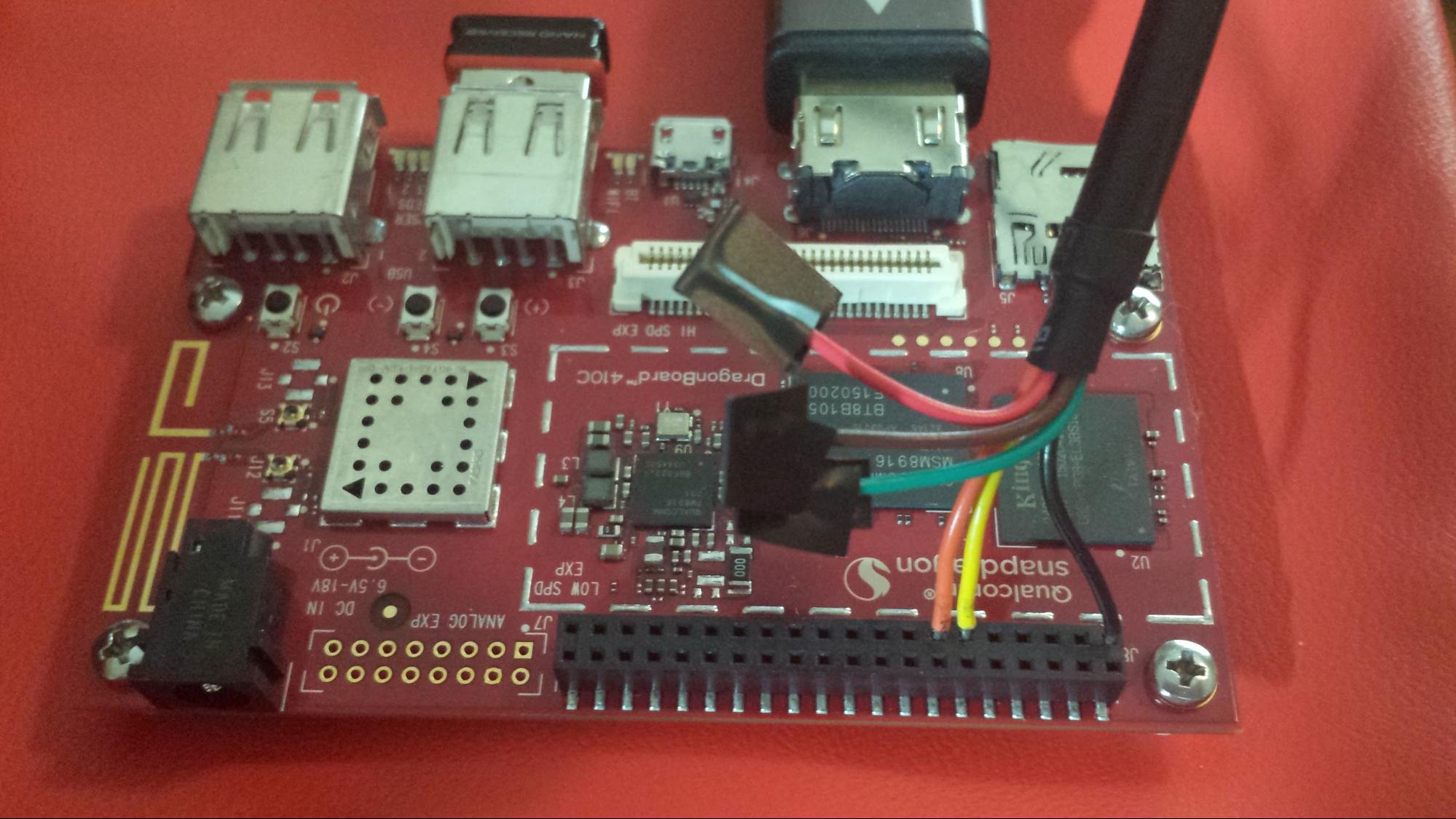

A picture of the FTDI cable connected to the DragonBoard 410c is shown below:
Connect the device's micro USB OTG port to your LAVA worker USB port.
Setup USB Ethernet.

The board does not have an Ethernet port. If you want to use a USB Ethernet adapter, additional setup is required.

The DragonBoard 410c hardware design prevents simultaneous use of the micro USB (device mode) and USB Type A (host mode) ports; they are mutually exclusive.

To support both fastboot (device mode) and USB Ethernet (host mode), you must be able to toggle the OTG connection. This is typically achieved by connecting the OTG port to the LAVA worker through a controllable smart USB hub. The commands for the switches can be provided via the pre_power_command and pre_os_command variables in device dictionary. In the job definition, you can use the variable names in the command action to issue the commands.
Set dip switch 2 to ON position for booting from SD card or eMMC.
If needed, flash or upgrade device FW and partition table. These artifacts can be used.
Ensure that the device boots to fastboot mode on every power-on. For additional instructions and troubleshooting, see dragonboard 41c guides.

In general, setting up a fastboot device with an LAA is much simpler. It is essentially plug-and-play. For an example, see the DragonBoard 410c guide.

Creating device type¶

Create the device type using the name dragonboard-410c.

Creating device¶

Add the device using the following settings:
- Device Type: dragonboard-410c
- Hostname: A unique name (e.g., dragonboard-410c-01)

Add the device configuration.

Device dictionary example for a DragonBoard 410c:

{% extends 'dragonboard-410c.jinja2' %}

{% set adb_serial_number = 'a2c22e48' %}
{% set fastboot_serial_number = 'a2c22e48' %}
{% set device_info = [{'board_id': 'a2c22e48'}] %}

{% set connection_command = 'telnet localhost 2002' %}

{% set hard_reset_command = ['usbrelay 1_2=0', 'sleep 1', 'usbrelay 1_2=1'] %}
{% set power_off_command = 'usbrelay 1_2=0' %}
{% set power_on_command =  'usbrelay 1_2=1'%}
{% set pre_power_command = 'usbrelay 1_3=1' %}
{% set pre_os_command = 'usbrelay 1_3=0' %}

{% set flash_cmds_order = ['update', 'ptable', 'partition', 'hyp', 'modem',
                           'rpm', 'sbl1', 'sbl2', 'sec', 'tz', 'aboot',
                           'boot', 'rootfs', 'vendor', 'system', 'cache',
                           'userdata', ] %}

Note

Update the example to use your device's actual serial number, serial connection and power control commands.

Another device dictionary example for dragonboard-410c.

For more about fastboot device configures, see the fastboot configurations.

Sample job definition¶

device_type: dragonboard-410c
job_name: db410c fastboot example

timeouts:
  job:
    minutes: 30

priority: medium
visibility: public

actions:
- command:
    name: pre_power_command
    timeout:
      minutes: 1

- deploy:
    to: fastboot
    docker:
      image: linaro/noble-adb-fastboot
      local: true
    images:
      boot:
        url: https://storage.lavacloud.io/health-checks/dragonboard-410c/boot-linaro-buster-359.img.gz
        compression: gz
      rootfs:
        url: https://storage.lavacloud.io/health-checks/dragonboard-410c/rootfs-linaro-buster-359.img.gz
        compression: gz
        apply-overlay: true
    timeout:
      minutes: 15

- command:
    name: pre_os_command
    timeout:
      minutes: 1

- boot:
    method: fastboot
    docker:
      image: linaro/noble-adb-fastboot
      local: true
    prompts:
    - 'root@linaro-developer:~#'
    timeout:
      minutes: 5

- test:
    definitions:
    - from: inline
      repository:
        metadata:
          format: Lava-Test Test Definition 1.0
          name: test-definition-example
        run:
          steps:
          - lava-test-case run-uname-a --shell uname -a
          - lava-test-case check-os-id --shell 'cat /etc/os-release | grep "ID=debian"'
      path: inline/test-definition-example.yaml
      name: test-suite-example
    timeout:
      minutes: 5
